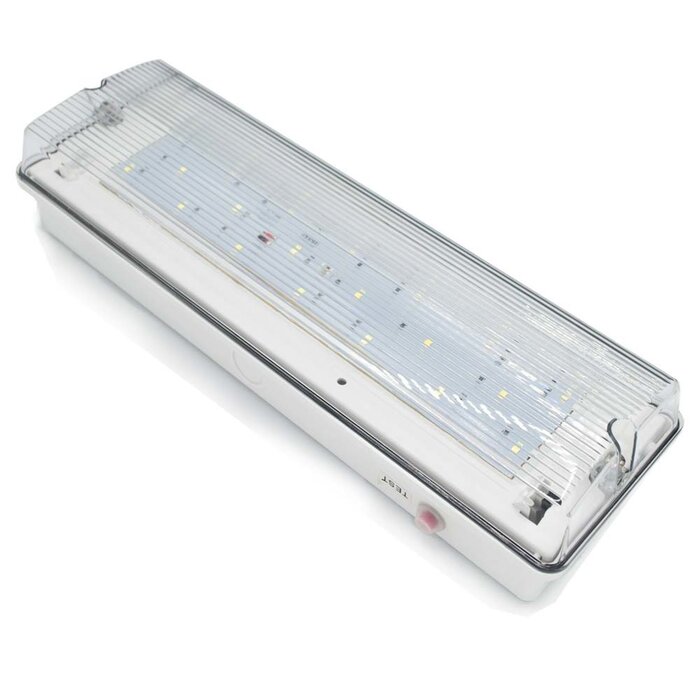

6 watt surface-mounted emergency lighting OTG-GG-9

This is the fixture in our range with the highest light output. The emergency light fixtures consist of 20 LED lights and a test button, that allows you to manually check if the battery is working.

There are two versions of this fixture:

1) OTG-GG-9 with standard Ni-Cd battery (1500mAh) and a battery life of > 3 hours.

2) OTG-GG-9 with standard Ni-Cd battery (1800mAh) and a battery life of > 3.5 hours.

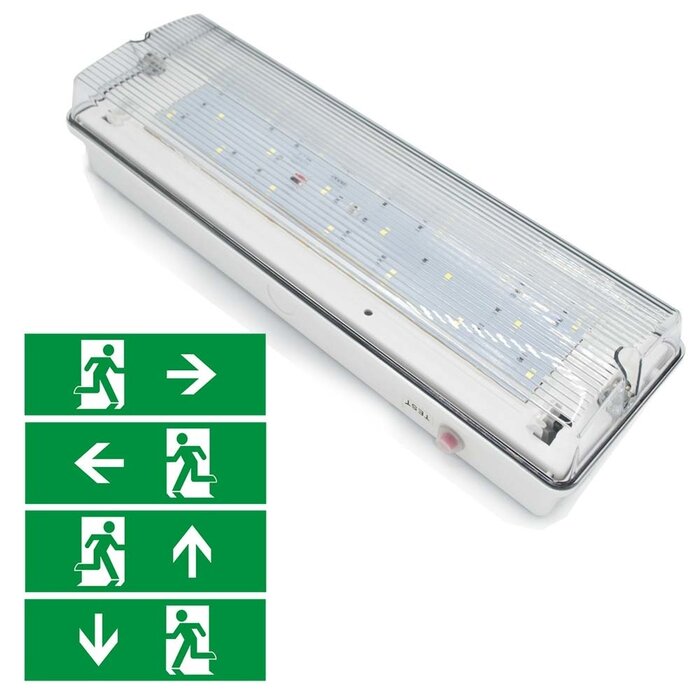

Both fixtures come with 4 icons with the following directions: left, right, up and down. The icons can easily be placed on the fixtures, depending on what direction is applicable and desirable in your specific situation. Please note: to walk straight ahead, you need to use the icon with the arrow going upwards. Before attaching the icon on the fixture, it is best to first use a mixture of soap and water on the surface of the fixture. You can then easily smooth out the air bubbles under the sticker when you stick the icon on the fixture.

Extra icons

It is possible to order a separate icon set, consisting of 8 icons. Click here if you wish to order this set.

Installation

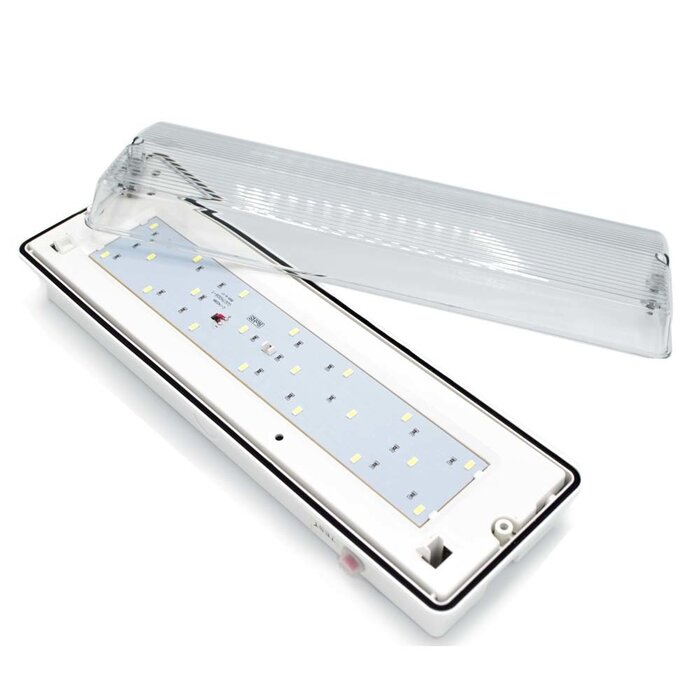

The LED emergency light can be mounted above doors, windows and on walls. When consulting a specialist, you can decide how many emergency lighting points you need and how you can mount them.  Circles are marked on the back and the 4 sides of the fixture that you can pierce to create holes. After you have drilled a hole, you can connect the wiring to the terminal block that is attached to the circuit board. This is how you connect the fixture to the electricity network (230V). To make the hole water-resistant, you can mount a pg9 strain relief in the drilled hole through which the wiring will go. This way you protect the fixture against water damage and the strain relief also ensures that the cable cannot be disconnected from the terminal block.

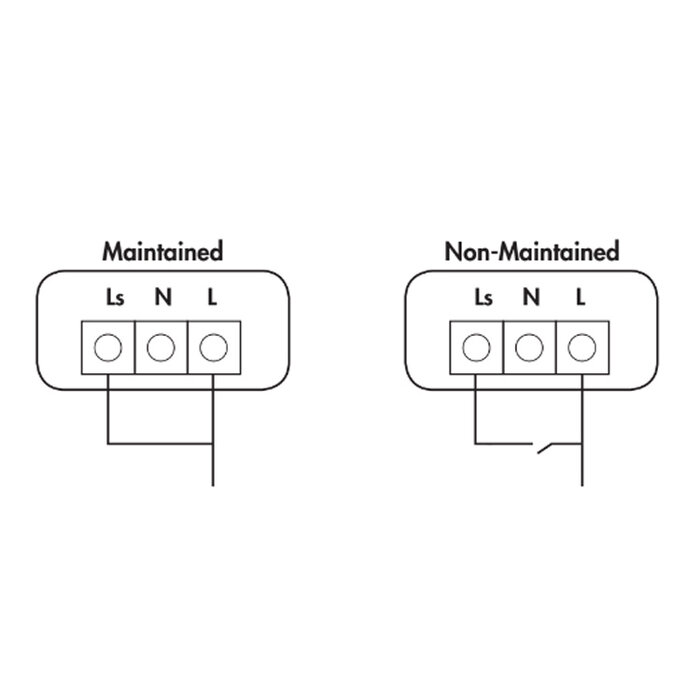

Continuous or emergency lighting

The fixtures can be set to a continuous mode (permanent lighting), or an emergency mode (non-permanent or non-continuous emergency lighting). When the fixture is set to the continuous mode, the light will be on even when there is no power failure. When the fixture is set to the emergency mode, the light will turn on when the fixture is not receiving power from the mains and it will stay on for at least 3 hours. Three hours is usually sufficient for employees and visitors to leave the building and also falls within the legal standard.

CE approved

All our emergency light models are CE approved and comply with the standards and requirements that apply in Europe. The housing and diffuser are made of high quality synthetic.
